Our weighing modules are predestined for the precise weighing of containers used in the food or pharmaceutical industry. They are therefore ideal for weighing storage containers, tanks and silos to determine the amount of contents. Furthermore, the modules can also be used with mixers to either dose or determine the current content.

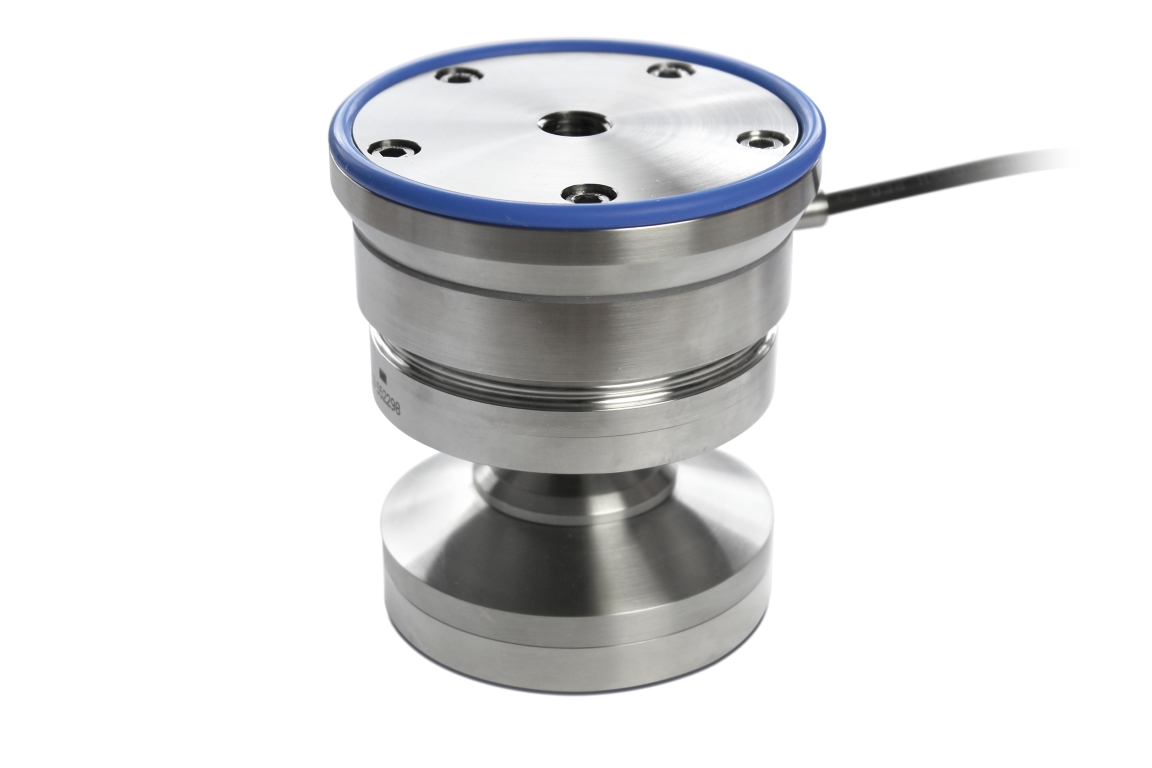

When it comes to dosing individual components from intermediate containers into a further container, our Novego® weighing module is recommended as a precise solution for component dosing. In addition to the food and pharmaceutical industries, the product is also interesting for the cosmetics industry.
Filling of finished products
You want to accurately fill finished products? Our Novego® weighing module offers high measuring accuracy and process reliability for your production. Due to its hygienic design, the weighing module is suitable for industries in which an environment that is as germ-free as possible is important, such as the food or pharmaceutical industries.
The Novego® concept offers a unique solution for inclined positions. The pendulum base is also available with integrated tilt correction for installation on sloping floors. This allows cleaning water to run off while the weighing module is installed exactly in the horizontal plane. This ensures precise measurement results where other load cells generate errors.
Containers with more than three legs need to be levelled. And if there is a large slope, height correction is also necessary. Containers without weighing technology can often be adjusted for this by means of threaded bolts.
Compensation of up to 8 centimetres - in the twinkling of an eye.
Novego® offers an innovative solution here. A height adapter enables the compensation of height differences up to a length of 8 cm by simply turning it. For example, differences in the length of a container with 4 legs can be easily compensated for with two adapters.
Mixing systems sometimes exert lateral forces on the weighing technology during operation. Fluctuations in the dosed quantities can be the result. The less the weighing technology is influenced by lateral forces, the higher the reproducibility.
Unwavering: Precise results despite strong lateral forces
Unique in the market, Novego® maintains the specified measuring accuracy even with high lateral forces of up to 20 percent of the load. The integrated 360-degree restraint always causes the load cell to return to the centre position. And this from any direction. The load cell's six strain gauges guarantee a measuring accuracy of C3 according to OIML R60. In real applications, system accuracies of better than 0.05% have already been documented.
